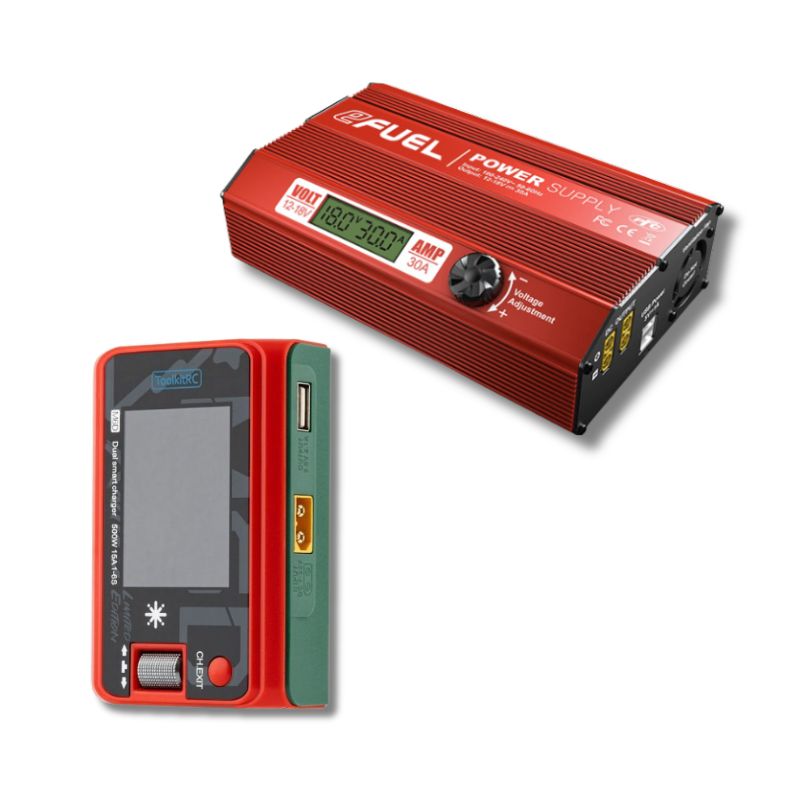

ToolkitRC M6D SkyRC 540W Charging Combo

Description This is a KiwiQuads special combo includes the ToolkitRC M6D charger (Christmas Edition), along with the 540W SkyRC Powersupply, the ultimate charging kit! The ToolkitRC M6D 500W 25A DC Charger delivers double-channel efficiency and maximum 500W output power. Compact yet powerful, it features an IPS display with a clean, intuitive UI and supports various battery types, from LiPo to NiMH. Its innovative heat-dissipating system ensures peak performance, while the integrated USB interface offers convenient phone charging. Lightweight and portable, this charger redefines convenience with unmatched functionality and a vibrant, user-friendly design in two stylish colors. Features Double Channel, Double Convenience，Small volume, super high power density The maximum output is 500W, and the output current is 15A per channel Optimize Heat Dissipation, New heat dispersing system dissipating high power heat in time IPS Display, Wide View, 650,000 full color, 240×320 resolution New clean UI, Designed for charging, more intuitive and simple Integrated USB Interface, 5V output for mobile phone charging, with M6D firmware upgrade Specifications Input: 7.0-28.0V @MAX 30A Battery type: LiPo LiHV LiFe Lilon@1-6S | NiMH @1-16S Pb @1-10S Balance current: 800mA @2-6S Balance accuracy: < 0.005V Voltage range: 0.2-5.0V @1-6S Internal resistance: 1-100mR @1-6S Charge power: 500W @MAX 25A SYNC, 250W @MAX 15A×2 ASYC Discharge power: 500W @MAX 15A Recycle, 12W @MAX 3A Normal USB: 2.1A @5.0V [email protected] Product size: 98*68*35 mm Product weight: 220g Pack size: 108×80×46 mm Pack weight: 300g LCD: IPS 2.4″ LCD 320×240 px The eFUEL 540W/30A Regulated Power Supply is the ultimate in RC Hobby power supplies, provide plenty of power to all of your chargers! Features Active PFC (power factor correction) consists of active PFC and negative PFC. Active PFC, which is integrated into SkyRC 1200W/50A regulated power supply, can provide higher power utilization.  Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency. It’s capable of correction on AC input voltage and universal on a global basis. Output Voltage Adjustable – selectable from 12V to 18V Dual DC Power Outputs – It supports powering two DC equipments simultaneously. Specifications Cooling Method – Cooling Fan Input AC Frequency: 50-60Hz Input Fuse: 10A Fuse LCD Display Voltage Precision ±0.3V Current Precision ±0.5A Operating Temperature: 0-40℃ Output Current: 30A±1A Output Voltage: 12-18V DC±0.5V Output Voltage Ripple: < 9000mV Over Temperature Protection: < 65℃ Power Efficiency: 89% Power Factor: > 0.98 Voltage: 100-240V AC Weight: 1.62kg Size: 60mmH 218mmL Width 139mmL Manual: eFUEL 540W_Instruction_Manual_EN_V3.0
